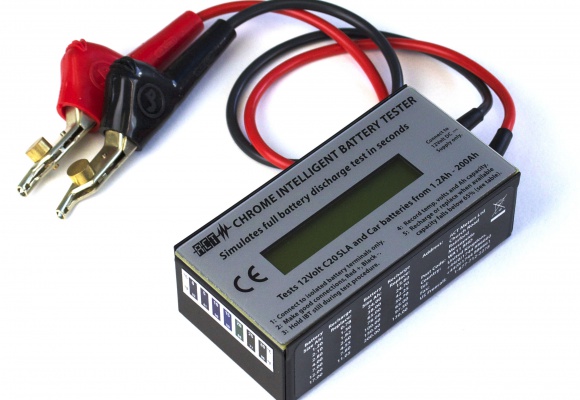

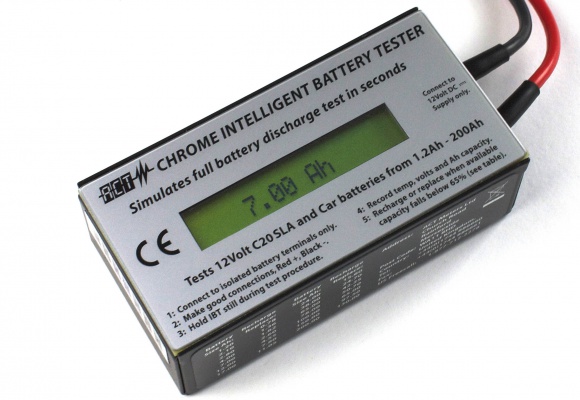

The ACT Chrome is an intelligent battery tester, designed for 12V lead acid batteries from 1.2Ah to 200Ah. The ACT Chrome accurately measure the available Ah capacity based on the battery's temperature and state of charge. This enables you to check the voltage and test the capacity of new batteries straight from the box, as well as used batteries which may show abnormal Ah capacity caused by excess temperature or from being under or overcharged. A table on the side of the meter indicates when batteries should be recharged or replaced due to age or operating conditions (65% of rated capacity). A temperature sensitive strip is located on the unit to record ambient temperature

Operating Voltage 12V DC Reverse Polarity Protection Diode Max Input Voltage 15VDC Battery Types SLA (AGM), Flooded (WET) C20 rated Battery Sizes 12V 1.2Ah to 200Ah Ah Capacity Test Simulated 20 hour (C20) load test to 10.50VDC Ah Result Based on the battery under test temperature and state of charge Battery Table Recharge or replace battery when Ah capacity available falls below 65% of the battery`s stated capacity Display Type Green back-lit LCD Flat Battery Warning 12V <10.50VDC Repeat Test Operation Max 5 test cycles per 30 minutes. Over Temperature Protected DCV Accuracy 5% of displayed reading Ah Accuracy 10% Fully charged premium brand C20 hour rated SLA batteries 20 - 25C (68F - 77F) Case Construction Metal / Plastic Size 55(H) x 100(W) x 35(D)mm Warranty 12 months RTB IN THE BOX ACT Chrome Intelligent Battery Tester, ACT/3532 Terminal Connectors, ACT/410 Soft Carry Case, Sample ACT/BTL Labels, Operating Instructions, Certificate of Calibration

• Chrome Datasheet.pdf
• ACTCHROME_Operation_Instructions.pdf
