ACT proudly introduce the all new ACT/6000 Alarm Engineers Digital Multimeter. This fantastic meter, exclusive to ACT, incorporates many special features making it the perfect choice for the security industry.
Safe - Up to CAT IV protection and fully HBC fused

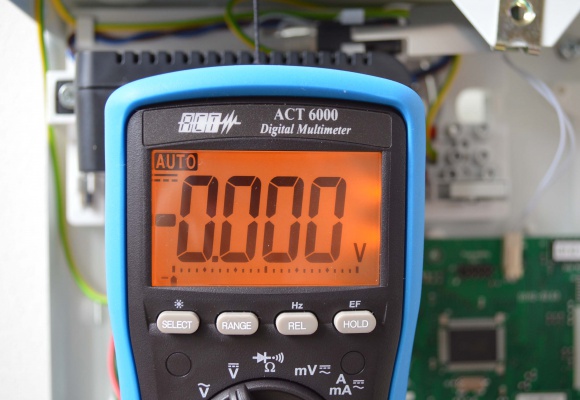

High Resolution - 6000 count, with High Contrast Backlit LCD display and Bargraph
Easy to Use - Beep Jack range protection protects both meter and user

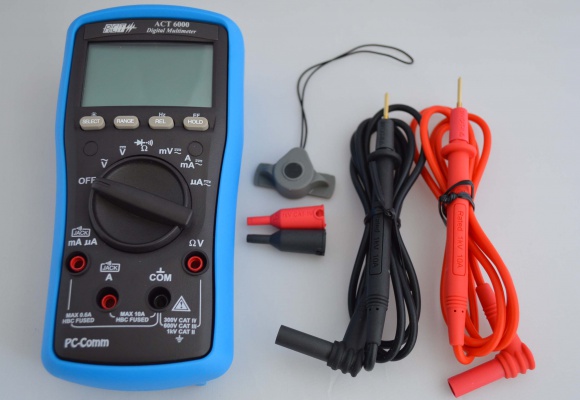

High Accuracy - Gold Plated silicon test leads

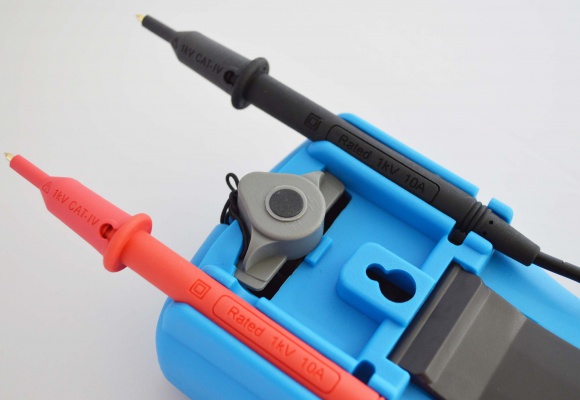

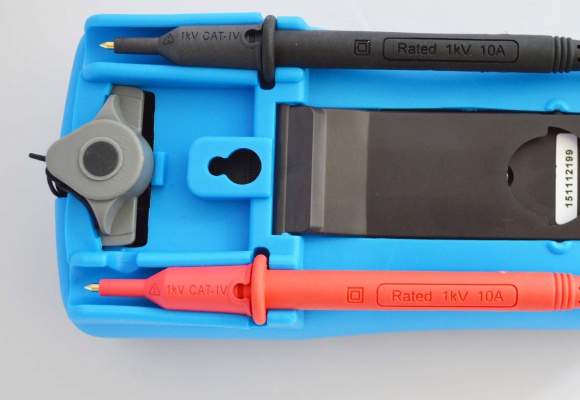

Convenient - Integrated Magnetic Hanger for hands free operation
Adaptable - Optional PC Interface for use as a bench meter and record readings

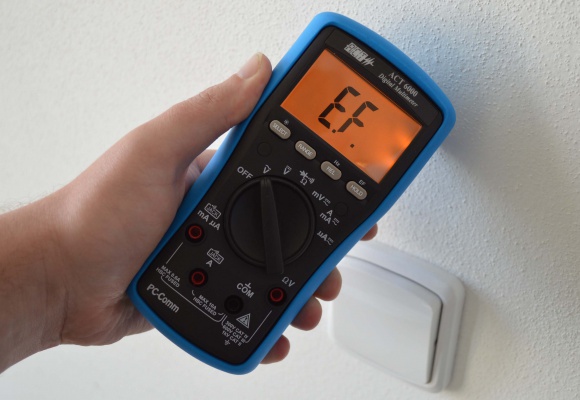

Practical - In-built Non-Contact EF Detection
Robust - High Visibility Holster and High Impact Construction
Please see manual for full technical specification and measurement accuracy.
Fully Autoranging
Every measurement range is fully autoranging. Simply switch on the instrument and start testing, leaving hands free for holding probes.
Voltage Measurement
Both AC and DC voltage measurement is possible with the instrument autoranging to match the voltage at the test probes. Voltage measurements up to 1000V are permitted without damage to the instrument.
Current Measurement
Three ranges are provided for current measurement of either AC or DC current from 0.1μA to 10A. Fused inputs protect both the user and the instrument in the case of excess current.
Resistance, Continuity & Diode Testing
Resistance can be measured directly on the ohms range from 0Ω up to 60MΩ. A continuity buzzer range is also available for checking low resistance between two points. The buzzer sounding if the resistance is less than 20Ω. Additionally, a diode range exists for testing forward and reverse bias operation of transistors and diodes.
Data Hold
This allows a displayed result to be held on the display until needed, rather than trying to remember a measurement. The result will be held until the HOLD button is pressed again, or until the unit switches off.
Mode
When making current measurements the mode function allows the selection of AC and DC measurement.

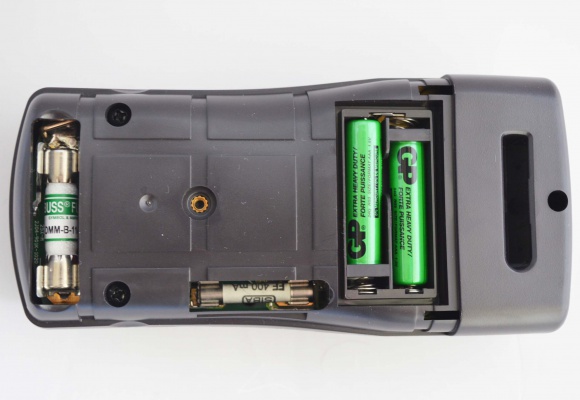

Separate Battery & Fuse Compartment
This means that both battery and fuses can be replaced without opening the main instrument body and breaking or invalidating the calibration seal.
Simple Operation

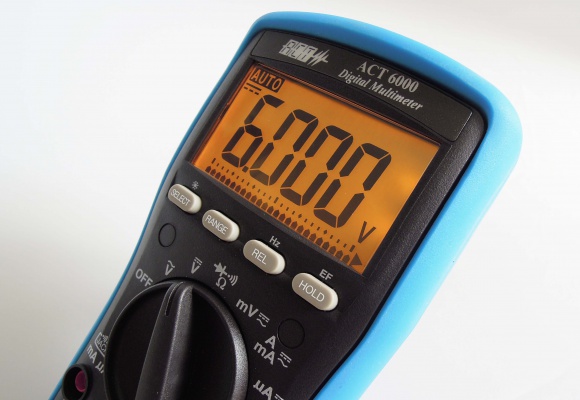

The ACT/6000 is easy to navigate with large buttons and central dial. Simple in use with straight forward options to select from the large high contrast 6000 count backlit display with high speed analogue bargraph.
Armoured Casing
Encased within a tough rubber holster, the ACT/6000 is well protected especially when being used in a industrial setting.
