Test SLA, GEL & FLOODED
Simply turn the Ah Calibration Control to select either standby SLA, cyclic GEL and car FLOODED battery types prior to testing. The Calibration Control also allows you to calibrate the battery tester to non standard battery types.
For 6V & 12V battery models
Test 6V battery models between 1.2Ah and 12Ah, and 12V battery models between 1.2Ah and 100Ah. With a wide Ah range, the ACT 612 is ideal for testing batteries used in many applications from security, mobility to leisure.

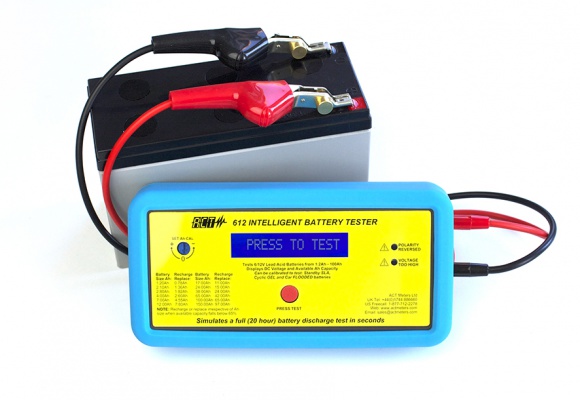

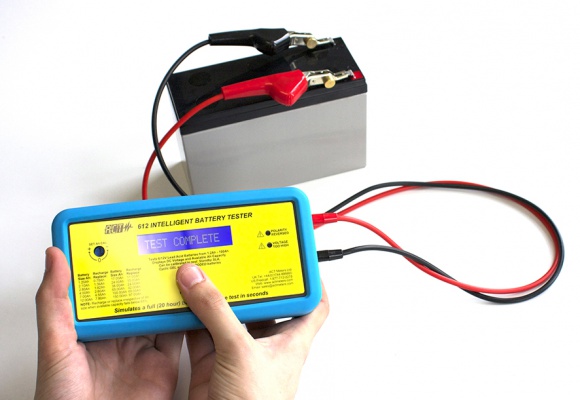

Connect the clamps to the battery, turn the Ah Calibration Control to the desired battery type under test and press the TEST button. It`s that easy. Results will be displayed within seconds.

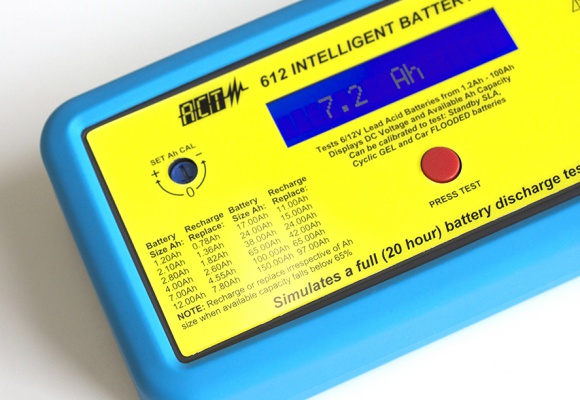

DC Voltage and Ah Capacity Results
There`s no confusing conversion rates or user interpretation needed when using the ACT 612. Two results are displayed the battery`s DC voltage followed by the actual Ah capacity available.
When to Recharge or Replace
Battery manufacturers recommend to recharge or replace a battery when its rated Ah capacity falls below 65%. By giving a clear and accurate Ah reading, the ACT 612 will help you identify replacements quickly and easily.
Advanced Pulse Load Technology
The ACT 612 uses advanced pulse load technology to analyse Ah capacity, based on the battery`s temperature and state of charge. This method is significantly more accurate than measuring voltage and internal resistance and does not deplete the battery unlike a conventional load tester.
Reliable, Continuous Testing
Powered by the battery under test and with ultra low heat generation.
Perfectly suited as a bench tester or out with the engineer.
Identify batteries that still have life remaining and reduce the amount discarded unnecessarily.
Show the customer the result and increase your own battery sales by recommending a new battery for their system.
IN THE BOX ACT/612 Intelligent Battery Tester, ACT/612TL Test Leads, ACT/430N Soft Carry Case, Sample ACT/BTL Labels, Operating Instructions, Certificate of Calibration
FREE GIFT - ACT 3in1 Pen/Stylus/Torch - when purchased directly through actmeters.co.uk
Operating Voltage 6V and 12V DC
Reverse Polarity Protection Red LED Indication
Max Input Voltage 15VDC
Over Voltage Protection Max 30VDC (10 sec.) with Red LED Indication
Battery Types SLA (AGM), GEL & Flooded (WET)
Battery Sizes 6V (1.2Ah to 10Ah) and 12V (1.2Ah to 100Ah)
Ah Capacity Test Simulated 20 hour (C20) load test to 10.50VDC
Ah Calibration Calibrated at 0 (zero) position to brand new fully charged premium brand SLA batteries rated at C20 hour at 20?C (68?F)
Ah Result Based on the battery under test temperature and state of charge
Adjustment Provides +/- Ah adjustment to brand new fully charged standby SLA, cyclic GEL and car FLOODED lead acid batteries
Battery Table Recharge or replace battery when Ah capacity available falls below 65% of the battery`s stated capacity
Display Type Blue Back-lit LCD
Flat Battery Warning 6V <5.30VDC, 12V <10.50VDC
Repeat Test Operation Can perform repeat tests continuously
DCV Accuracy +/-2% of displayed reading
Ah Accuracy +/-5% Fully charged premium brand C20 hour rated SLA batteries at 20 - 25?C (68 - 77?F)
Applied Pulse Load 6A 1.2Ah - 7Ah, 18A 8Ah - 100Ah
Ah Cal Adjustment Approx. ?25 dgts
Case Construction High impact ABS with holster
Size 84(H) x 170(W) x 41(D)mm (including holster)
Warranty 12 months RTB
IN THE BOX ACT/612 Intelligent Battery Tester, ACT/612TL Test Leads, ACT/430N Soft Carry Case, Sample ACT/BTL Labels, Operating Instructions, Certificate of Calibration and FREE GIFT - ACT 3in1 Pen/Stylus/Torch
